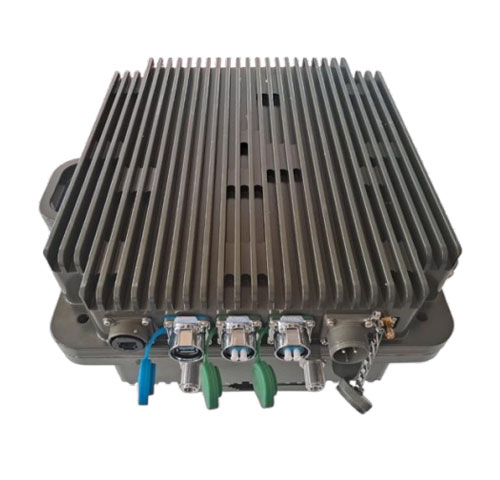

NVIK Tactical Radio System

Key Features:

  • Supports up to 100 Active Users
    • Supports up to 50 simultaneous users
  • Supports Defence LTE Band 28
  • Throughput 90Mbps DL & 20Mbps UL at cell centre
  • 2x2 MIMO
  • 5-Watt power Output at Each Port
  • Integrated MANet MESH Radio
  • Manpack Design
  • User Location sharing
  • Integrated with Multi Bubble Technology, which will connect adjacent cells of 4G LTE network directly, no backhaul required between multiple NIB.

Product Overview:

  • NIB is a compact, all-in-one solution that integrates 4G with a core network, IMS Core with AES 256bit encryption.
  • It can be deployed and relocated at any time using an on-demand model.
  • Secure Private LTE network.
  • Quick Deployable within 10 Minutes.
  • Cell coverage up to 5Km (LoS, Requires deployement on 16m Mast).
  • NIB used to quickly restore wireless connectivity in damaged areas after a natural disaster.
  • NIB used for industrial applications such as defence, military, public safety, and surveillance.
  • Seamless interworking/connectivity with existing infrastructure between LTE and Non-LTE (Analog, VoIP, PSTN etc.) users.
  • Supports MCPTT
  • Suitable for Battle Field Communication

Technical Specifications:

GENERAL
Frequency Range 4G LTE Band 28
System Capability Multiple RF front end 4G/LTE, MANET
Operating Modes Stand-alone, or agile mesh network
WIRELESS
Wireless Transmission OFDM, Frequency Division Duplex (FDD) and Time Division Multiple Access (TDMA), Multiple Input Multiple Output (MIMO)
Channel Size Up to 20MHz (configurable per 3GPP specifications)
Channel Spacing 1 MHz
Max TX Power 2x2 MIMO 2 x 5W Each Port
Modulation OFDMA downlink, SCFDMA uplink
SECURITY
Encryption Over the air- 256 bit AES,
PHYSICAL
Dimensions 410x300x170mm
Weight 15 Kg
POWER
Power Consumption Max: 150W Typical Use: 100W
Power Requirements 24 VDC with AC power options available
Power Sources External battery or onboard platform power
STANDARD KIT INCLUDES
Antenna Kit 2 x Omni MIMO Peak gain 5.0 dBi
Hard Case Hard Case for shipment and storage
ACCESSORIES AND FEATURES
MANET Module Mesh radio (L or 5 Band)
ENVIRONMENT
Temperature Operational: -20 °C to +55 °C
Storage: -40 °C to +70 °C
IP Class IP65
