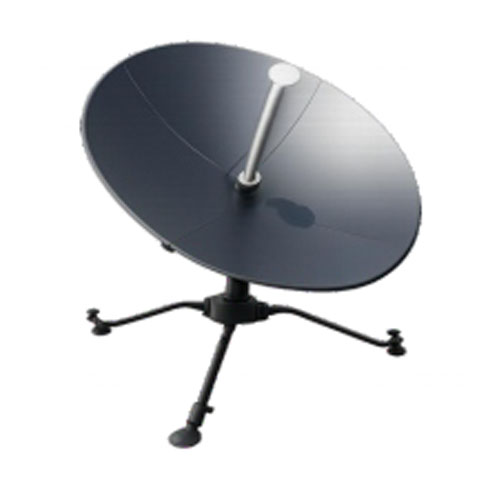

KU Band Manual Flyaway Antenna

0.75/1.0/1.2 KU Band Manual Flyaway Antenna

Modem Features:

The manual flyaway antenna is available in 0.75 m, 1.0 m, and 1.2 m reflector sizes to suit diverse deployment requirements. The antenna uses an advanced splashplate design that enhances reflection efficiency

The reflector is manufactured using high-strength carbon fibre with specially developed processing and surface-treatment techniques. This ensures high surface accuracy (RMS < 0.2="" mm),="" excellent="" mechanical="" strength,="" and="" optimal="" electrical="" conductivity="" for="" ka-band="">

Key Features:

• Manual Tracking
• Ring-Focus Sputtering Plate Antenna
• Azimuth & Elevation Turntable
• Portable Case
• Compass & Leveling
• 7” Display Unit for Lookup Angle Calculation with GUI (Optional)
• Carbon-Fiber antenna reflector offering lightweight construction, high surface precision, high RF efficiency, and excellent corrosion resistance, ensuring reliable operation in harsh environmental conditions.
• Compact and lightweight design enables easy portability and rapid deployment. A single operator can assemble and acquire the satellite within 5 minutes.
• The antenna is airline-check-in compliant for easy transportation.
• Quick-change feed system with simplified polarization selection, reducing setup time and operational complexity.
• Purpose-built for field operations, enabling rapid establishment of high-quality communication links anytime and anywhere.

Technical Specifications:
