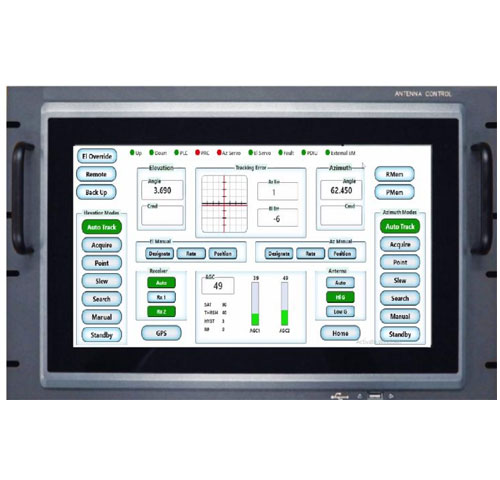

Antenna Control Unit (ACU)

Antenna Control System is designed for control of three axis platforms in Azimuth, Elevation and polarization. The control unit has several modes of operation and user-friendly GUI for selecting the mode and monitoring and control (M&C).

Operating Modes

  • Manual Tracking
  • Automatic Tracking
  • Search Mode
  • Point Mode
  • Slew Mode
  • GPS Tracking
  • Position Mode

GUI Features:

  • BITE Test
  • Health Parameters
  • Safety Limits
  • Angular Display (Az, El and Pol)
  • Error Display
  • AGC Values
  • Remote Monitoring
  • The ACU is designed to address several applications of Antenna Control for the different types such as which fall under Man Portable terminals, Transportable Mobile Terminals.
  • The same controller can address large antennas used for VSAT Hubs such as 4.5m and above.
  • The controller provides manual as well as auto acquisition of selected satellite and moves the mount to the calculated look angles automatically.
  • The polarization is also adjusted as per geographical location and coordinates of the satellite.
  • The system includes GPS and magnetic compass for true north alignment and position data in case of manual operation.

Technical Specifications:

Parameter Specification
Control Axes Azimuth, Elevation and Polarization
Angular Range Azimuth: 0°-360° continuous,
Elevation: 0°-90°,
Polarization: ±90°
Angular Resolution Typically, 0.1°
Position Accuracy ±0.1° or better
Control Interface RS-232 / RS-485 / Ethernet (TCP/IP)
Input Power 230 VAC, 50 Hz
Motor Control Type BLDC, Induction Motor, Stepper or Servo Motors
Tracking Modes Manual, Point, Slew, Position, Beacon Tracking, Auto Tracking, GPS Track
Feedback Sensors Absolute Encoders / Incremental Encoders
Environmental Ratings Operating Temp: -20°C to +55°C
Humidity: 95% RH non-condensing
Mechanical Mounting 19” Rackmount or Panel Mount
Display Interface LCD Touchscreen / Web UI
Remote Control Capability Supported via SNMP, Web GUI
Firmware Update USB or Network-based
Alarm / Diagnostics System Fault, Position Error, Motor Failure, Power Loss, Limit Switches
Weight 3-10 kg (varies by model)
Cooling Passive or Active (fan-cooled)
Compliance Standards MIL-STD (optional)
