UAV Tracker Unit

UAV Tracker Unit

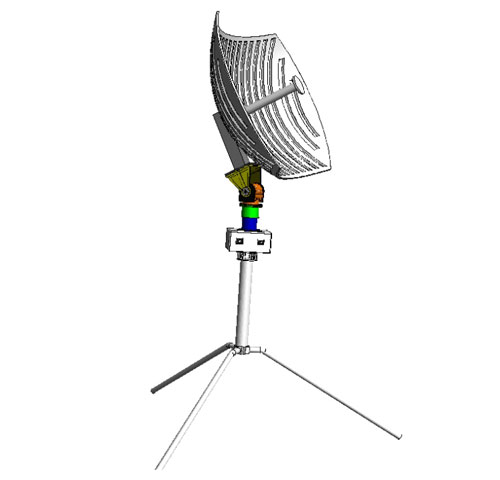

The UAV Tracker System is a high-performance, autonomous antenna tracking solution designed for reliable, long-range communication with unmanned aerial vehicles (UAVs). Utilizing advanced GPS based tracking algorithms, the system provides real-time, 2-axis directional alignment to maintain optimal link quality with moving aerial platforms.

The tracker supports both manual and auto-tracking modes and is compatible with various radio and telemetry systems. Featuring ruggedized construction, IP65- rated enclosures, and a compact footprint, it is ideal for field deployment in harsh environments. The system includes a built-in GUI interface for easy configuration and diagnostics. Key specifications include a tracking range of up to 100 km (Based on Radio Configuration), angular resolution of 0.1°, and operational temperature range from -20°C to +60°C.

Technical Specification

Sr. No. Description Specification
1. Pan Axis Range Continuous 360° (Slip Ring)
2. Pan Axis Speed 30° /Second
3. Tilt Axis Range 180° (±90°)
4. Tilt Axis Speed 30° /Second
5. Communication to Radio Through Ethernet, RS232/RS485
6. Feedback Absolute Encoder
7. Encoder Accuracy 0.1°
8. True North Alignment Automatic
9. Communication to Pan & Tilt RS485
10. GPS Receiver On Board GPS Receiver
11. Tracking Algorithm Option 1: GPS Based Tracking
Option 2: RSSI RF Signal Based Tracking
(With separate Software package)
12. Payload Capacity 20Kg
13. Antenna Switching RF Switch to switch between Omni & Directional Antenna
14. Antenna System Two/Four
Option 1: With cross polarization
Option 2: With vertical polarization
15. Antenna Gain 24dBi
16. RF Connector TNC (F)
17. Controller Windows Tablet with GUI Application
18. Operating Voltage 230V AC or 48V DC 6A
19. Operating Temperature -20° to +60°C
20. Weight 10kg (Only Tracker)

Benefits:

  • Enhanced communication reliability and range.
  • Simplified operation with intuitive control interfaces.
  • Increased operational efficiency with automated tracking and monitoring.
  • Flexible configuration options to meet diverse application requirements.

Applications:

  • Telecommunications Networks
  • UAV Communication Systems
  • Military and Defense Operations
  • Broadcast and Multimedia Distribution
