Monopulse Tracking Receiver

The Monopulse Tracking Receiver is a high-performance RF tracking receiver designed for Aircraft Tracking, satellite ground stations, radar systems and tracking antennas.

Key Features:

  • Dual-channel Processing
  • Wide Frequency Receiver 70Mhz to 6GHz.
  • Wide IF bandwidth support (200Khz-30 MHz Programmable)
  • Integrated AGC
  • AZ, EL Error Output
  • Compact 19" rackmountable enclosure (3U)
  • RS-232 or Ethernet-based remote control
  • Error Values communication with ACU through RS232 interface
  • Monopulse, also known as simultaneous lobe comparison, is a technique for measuring the direction of arrival of radiation.
  • The radiation may emanate from an active source such as a distant transmitting antenna, a beacon, a jammer, an astronomical body, or from a passive source—that is, a target or scatterer that reradiates some of the power incident on it.
  • It enables precise angle error detection using Monopulse techniques for automatic antenna alignment, ensuring reliable tracking of fast-moving aerial or spaceborne targets.

NIB Technical Specification

Parameter Specifications
No of Input Channels Two
Input Frequencies Programmable L Band frequency
Frequency Tuning 1 MHz step size
RF Signal Input Impedance 50Ω
Acquisition Range ± 500KHz
Input Signal Level -70 dBm to -10dBm
Input Power Without Damage +5 dBm (Typical)
Pre Detection RF Bandwidth 200KHz, 300KHz, 500KHz, 1MHz,
3MHz, 8MHz, 10MHz, 20MHz, 30MHz (programmable)
Output Impedance 50Ω
Output Signals Digital Error and AGC signals
Automatic Gain Control Built In
AGC Time Constant 0.1, 10, 100, 1000 msec (selectable)
AM Polarity Normal, Inverted (Selectable)
BITE/Health Monitoring Receiver Health Status
Synthesizer Lock Status for both receive channels
Reference LO Status
Receiver 1 Input Frequency
Receiver 2 Input Frequency
Display of input signal in dBm for both receive channels
Display of AZ, EL Error signal levels
Display of AGC1 and AGC2 signal levels
Output Monitoring AGC1, AGC2, AZ Error, EL Error
Control/Data Interface Ethernet/ RS232

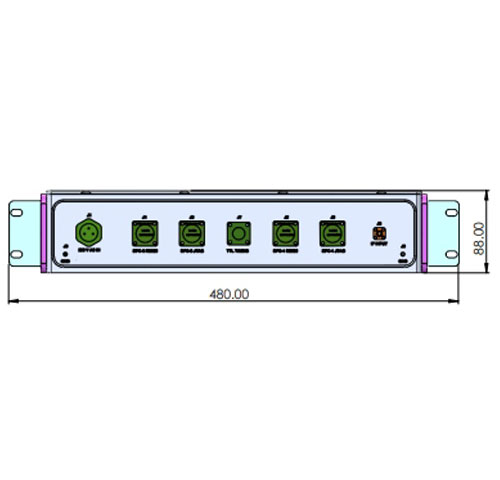

Dimensions 3U 19” Rack Mount Chassis
