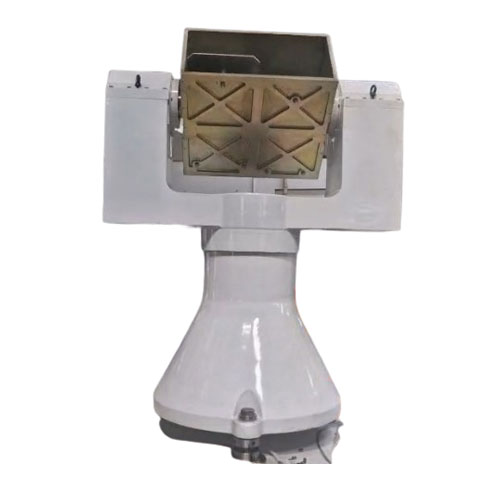

Dual Axis Turntable (AZ & EL) , Model No. YST-01

The Dual Axis Turntable, Model No. YST-01, is a high-precision electromechanical positioning system designed for accurate azimuth and elevation control of antennas or payloads. Engineered for continuous operation, the Turntable delivers smooth motion, high pointing accuracy, and robust environmental protection, making it ideal for testing, tracking, telemetry, and communication applications.

The Dual Axis Antenna Turntable system provides 360° continuous azimuth rotation and 0° to +90° elevation movement, enabling full directional coverage without cable twist. High-Torque motors allow azimuth/elevation rotation speeds >50°/sec ensuring fast target acquisition and smooth tracking. The system supports high acceleration capabilities, with azimuth/elevation acceleration 200- 500°/sec? enabling responsive motion control with payload capacity of 200Kg.

A dual-channel RF rotary joint supports simultaneous transmit and receive paths, while a 60-line slip ring assembly provides uninterrupted power supply and monitoring & control (M&C) signals during continuous rotation.

Technical Specifications Two Axes Turntable (Azimuth & Elevation) Model No. YST-01

Sr. No. Parameter Specification
1. Positioner Limits Azimuth: 360° Continuous
Elevation: 0° to 90°
2. Rotation Speed ≥ 50°/sec Azimuth
≥ 50°/sec Elevation
3. Acceleration 200 - 500°/sec² Azimuth
200 - 500°/sec² Elevation
4. No. of Channels in Rotary Joint Two RF Channel (Tx & Rx)
5. Slip Ring Assembly 60 Lines of power supply and M&C signals
6. Backlash Error <0.1°
7. Pointing Accuracy <0.2°
8. Tracking Accuracy <0.2°
9. Safety Features: Elevation Movement Limit Switches, Brakes and Mechanical Stoppers
10. Safety Features: Azimuth Movement Brakes
11. Payload Capacity 200Kg
12. Exterior Paint and Anodizing Method PU paint colour (As per User Requirement)
13. Cooling Mechanism Forced Air Cooling (Fans/ Blower)
14. Environment Protection Anodization of exposed surfaces
Gaskets to avoid water seepage
Water drain hole in the reflector
